SLAM Point

Scan. Label. Apply. Manifest.
Simplified.
A factory-built SLAM system that arrives assembled, aligned, and commissioned — ready to run. Roll in. Plug in. Ship.
Rapid Deployment

Up and Running in Hours, Not Weeks

10:00 AM

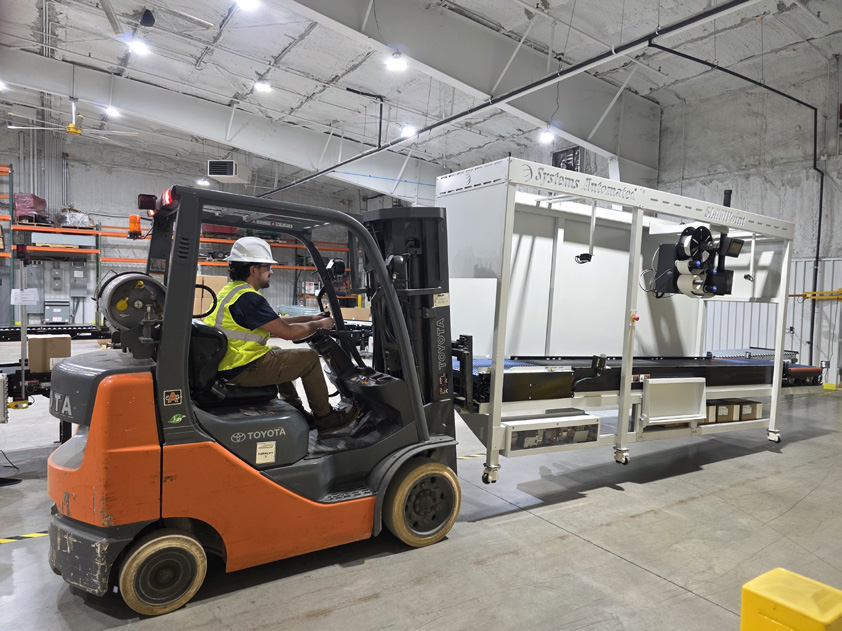

SLAMPoint Arrives On-Site

Fully assembled. No field alignment required.
10:15 AM

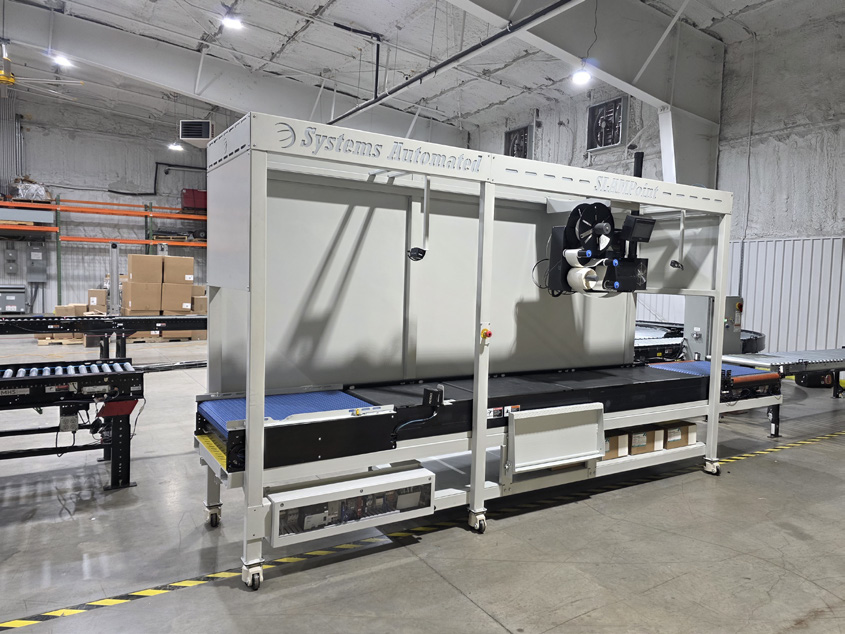

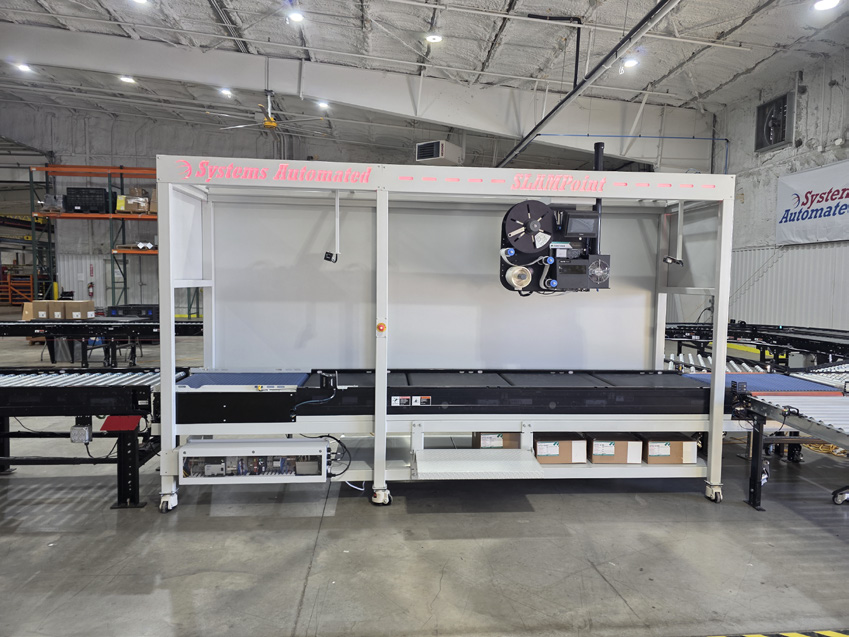

Rolled Into Position

Single chassis design — just roll it where it needs to go.
11:00 AM

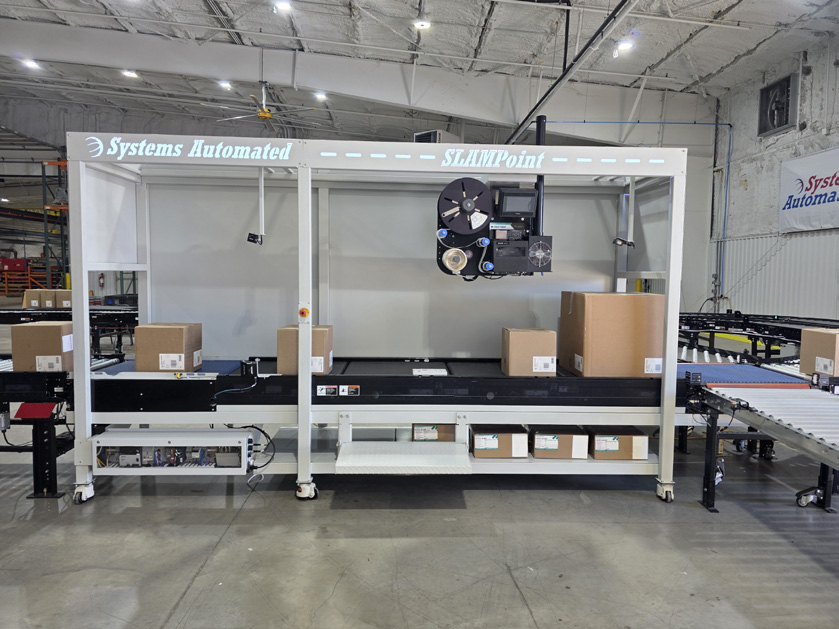

Plugged In & Powered Up

One power connection. Two network cables. That's it.
11:15 AM

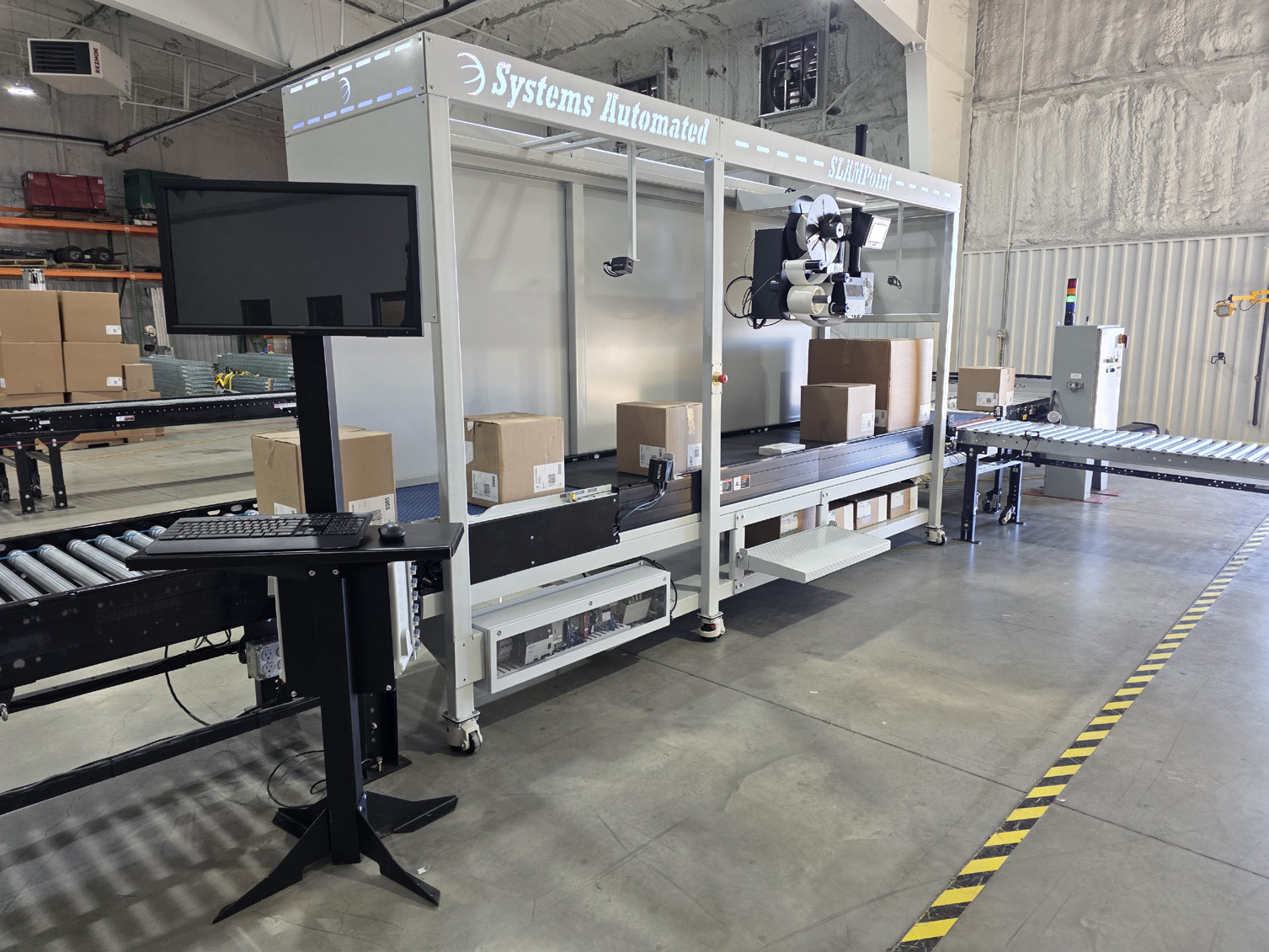

Scanning, Labeling, Shipping

Factory-tested and ready to process packages immediately.
10:00 AM

SLAMPoint Arrives On-Site

Fully assembled. No field alignment required.
10:15 AM

Rolled Into Position

Single chassis design — just roll it where it needs to go.
11:00 AM

Plugged In & Powered Up

One power connection. Two network cables. That's it.
11:15 AM

Scanning, Labeling, Shipping

Factory-tested and ready to process packages immediately.
Capabilities

Built for Speed, Reliability & Simplicity

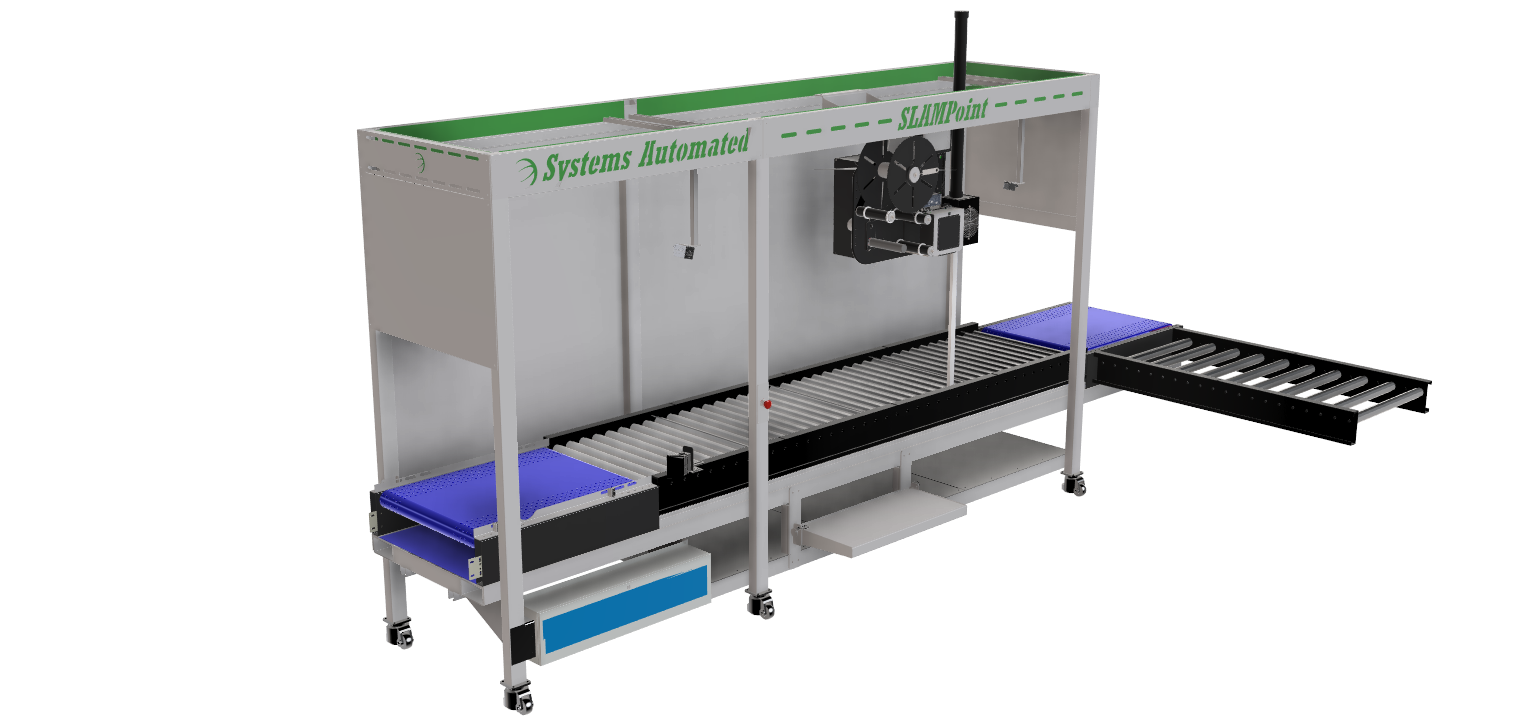

SLAMPoint mounts everything to a single engineered chassis — scanning, labeling, applying, and manifesting in one integrated unit.

Rapid Deployment

No field alignment needed. Arrives fully assembled, factory-tested, and ready to run.

Stock Configuration

Proven, repeatable design — built for the mid-market with a competitive price point.

Modular Relocation

Easily integrated with existing systems. Move and redeploy as your operation evolves.

Built-In ControlPoint WCS

Includes advanced Warehouse Control System with graphical machine statuses and KPI dashboards.

Production Analytics

Real-time production statistics, system reporting, and SLAM KPI Dashboard built in.

Designed to Grow

Expand capabilities without starting over — add sort destinations, reject diverts, scales, and more.
Technical Details

Key Package Specifications

Power Connection
One (1) 20A, 120 VAC, single-phase
Network Connection
Two (2) 1 Gbps CAT5e (or better) RJ-45
Data Integration
REST API or shared SQL table
Installed Dimensions
Approx. 192" L × 50" W × 100" H
Conveyor Width BF
28" W between frame
Rated Throughput
Up to 25 cartons per minute
Product Mix
Cartons and poly bags
Min Carton Size
9" L × 6" W × 1" H; 0.5 lb
Max Carton Size
28" L × 24" W × 24" H; 50 lb
Label Application
Top-apply label printer (options available)
Infeed ID
Side-read LPN camera (options available)
Barcode Spec
1D Code 128, ANSI Grade A, 15 mil+

Base Package Includes

  • Conveyor with SLAMPoint frame
  • LPN side camera scanner
  • Top-apply 4" × 6" shipping label printer applicator
  • ControlPoint WCS with KPI dashboard
About

Built by Systems Automated

Founded in 1983, Systems Automated is a trusted leader in turnkey automation and conveyor integration. From engineering and manufacturing to installation and support, everything is handled in-house to ensure service, quality, and results.
  • In-house Engineering, Controls, and Manufacturing
  • Factory-built and tested solutions
  • Hands-on, real world experience for over 40 years
  • 100% U.S.-based expertise
Get Started

Ready to Simplify Your Shipping Line?

Let's talk about how SLAMPoint can streamline your operation. Reach out to schedule a conversation to discuss your requirements.
