Options

Technical Details

Key Package Specifications

Power Connection

One (1) 20A, 120 VAC, single-phase

Network Connection

Two (2) 1Gbps CAT5e (or better) standard RJ45 connections

Data Integration

REST API or shared SQL table

Installed Dimensions-Base

Approx. 192" Lx50" Wx 100" H(with step extended)

Installed Dimensions - With So

Approx. 192" Lx 50" Wx 100" H(with step extended)

Shipping Dimensions- Base

Approx. 192" Lx 39" Wx 90" H

Shipping Dimensions - With So

Approx. 192" Lx 39" Wx 90" H

Supplied Conveyor width BF

28" W between frame (other options available)

Rated Product Mix

Cartons or polybags

Minimum Carton Size

9" Lx 6" Wx 1" H 0.5lb

Maximum Carton Size

28" Lx 24" Wx 24" H; 50 lb

Rated Throughput

up to 25 Cartons per minute

Label Application

One (1) Top-applyLabel Printer (other options available)

Infeed Product Identification

One (1) 3de read LPN camera (other options available)

Base Barcode Specification

1D Code 128, ANS Grade A, 15 mil+(other options available)

Base Package Includes

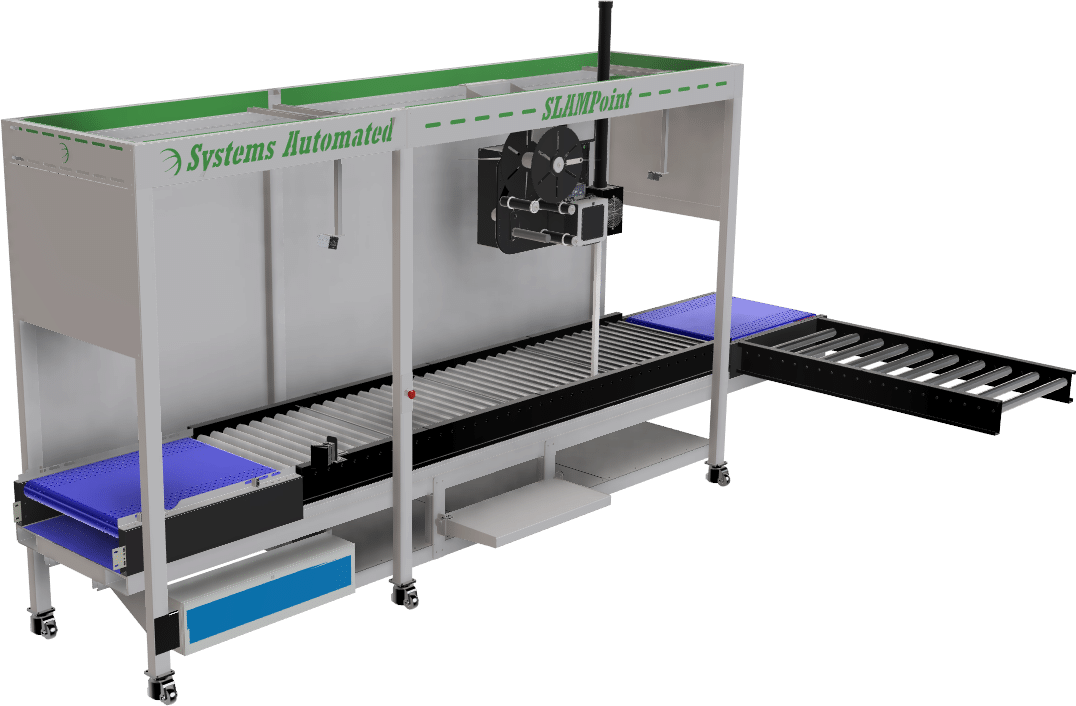

Conveyor with SLAMPoint frame
LPN side camera scanner
Top-apply 4" × 6" shipping label printer applicator
ControlPoint WCS with KPI dashboard

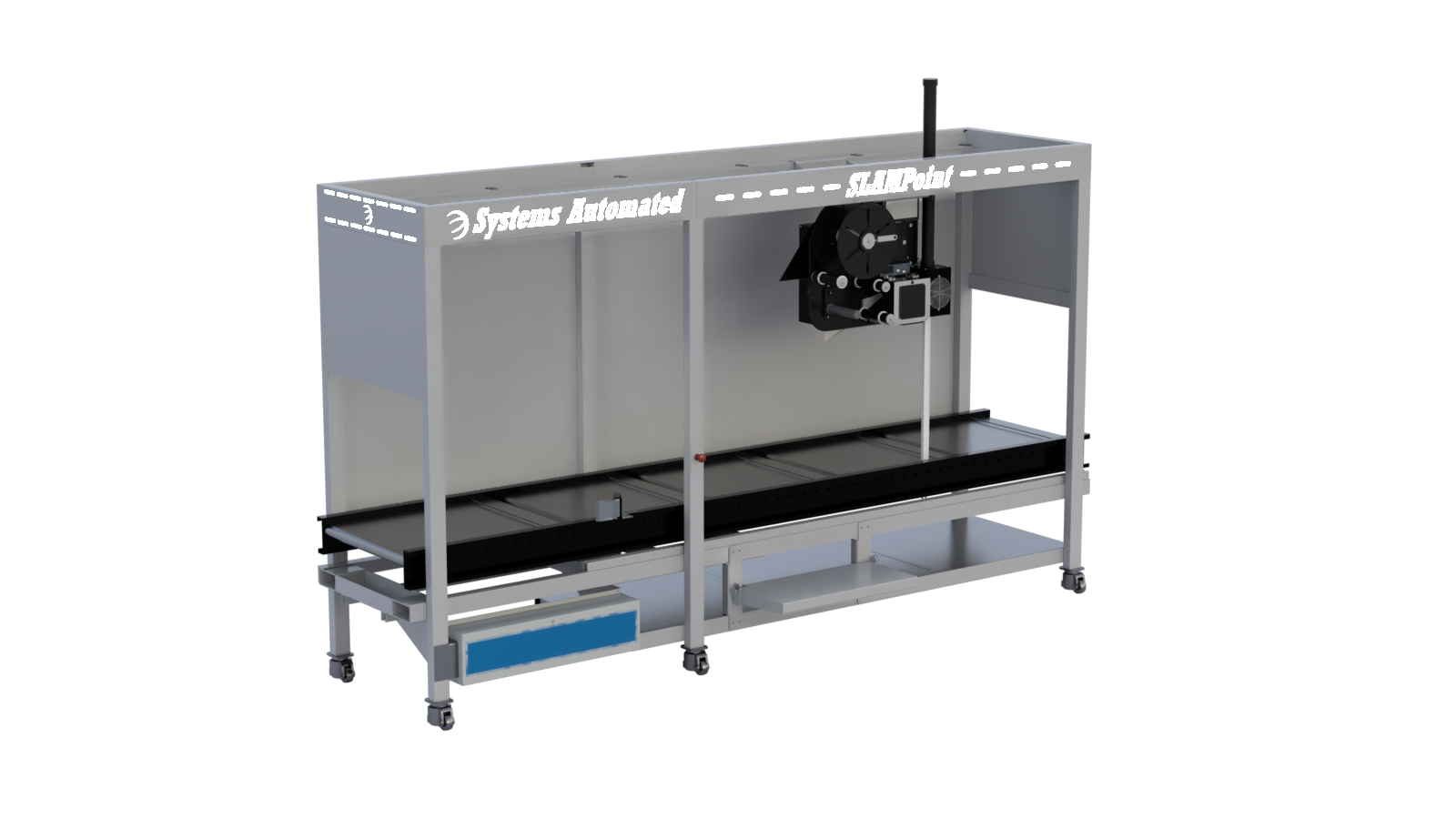

Base System

Side Read Camera for LPN Labels
Top Apply Printer Applicator
Stand Alone HMI
Includes installation of 1 day by our technician

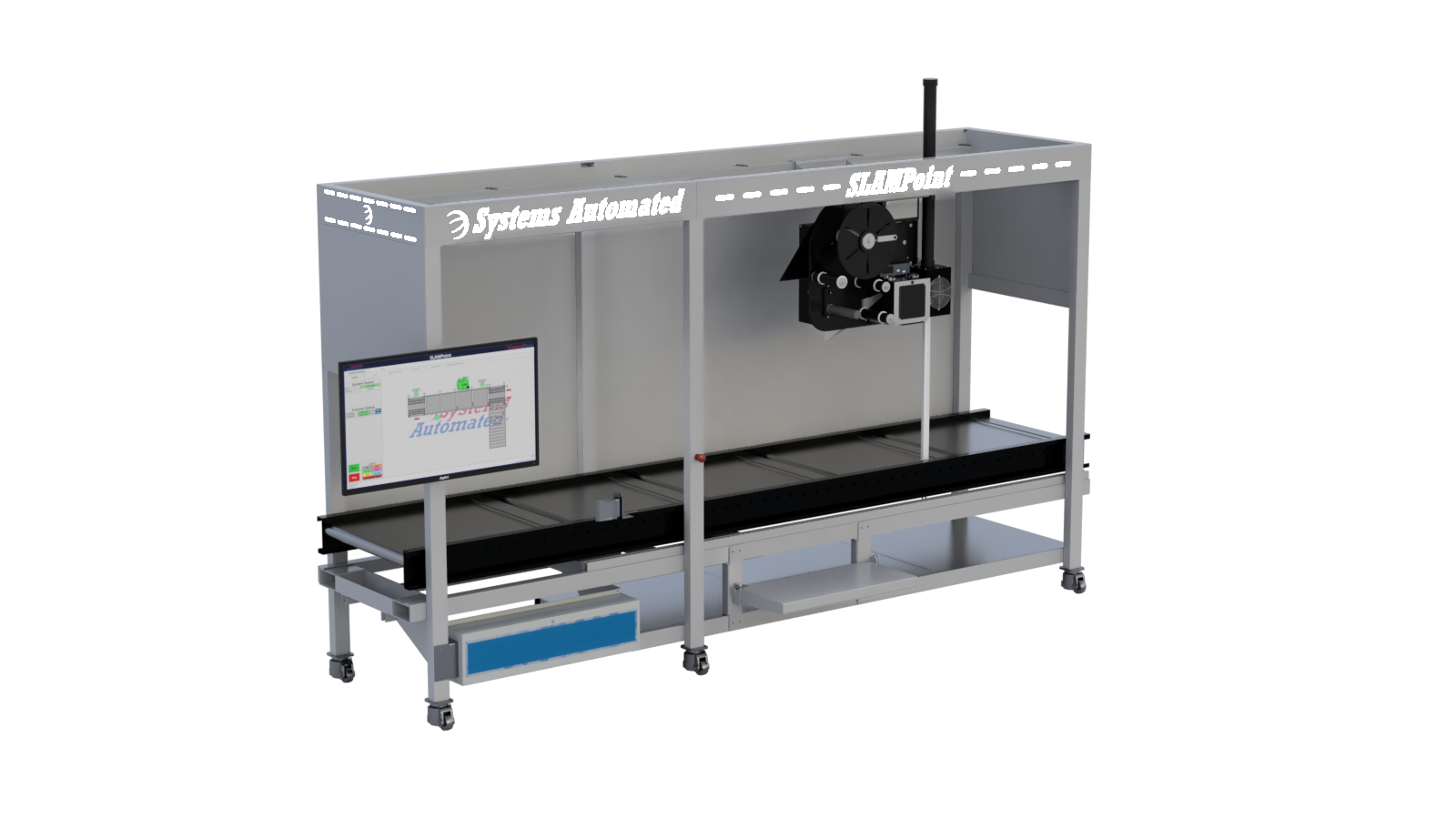

Add Dashboard

42” Monitor attached to Base in Your Preferred Location

Add Label Verification

Top Read Camera for Applied Label Verification

Add Scale

Integrated Weigh Legs
Data Displayed on HMI

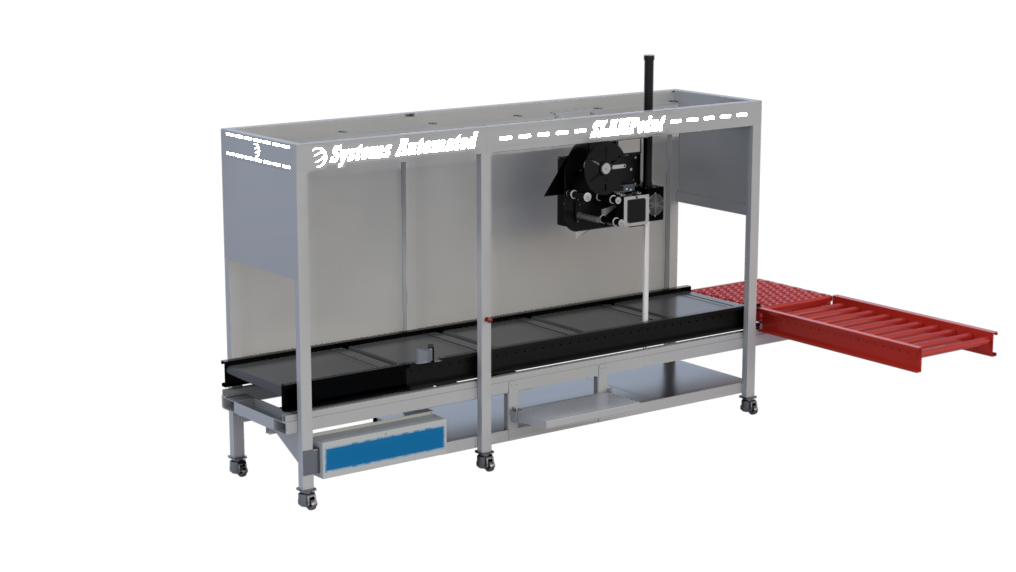

Add Hospital Divert for Cartons

Includes 5’ of Gravity Conveyor

Add 3rd Destination for Cartons

(Requires Hospital Divert)
Utilizes Opposite Divert Destination with 5’ of Gravity
Configurable for Carrier Based Sortation

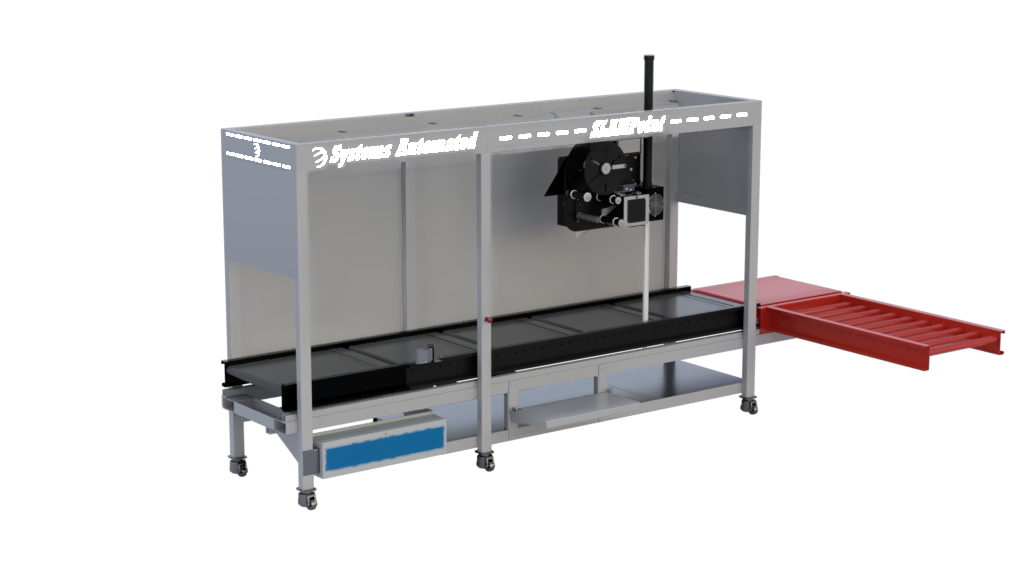

Add Hospital Divert for Cartons and Polybags

Includes 5’ of Gravity Conveyor

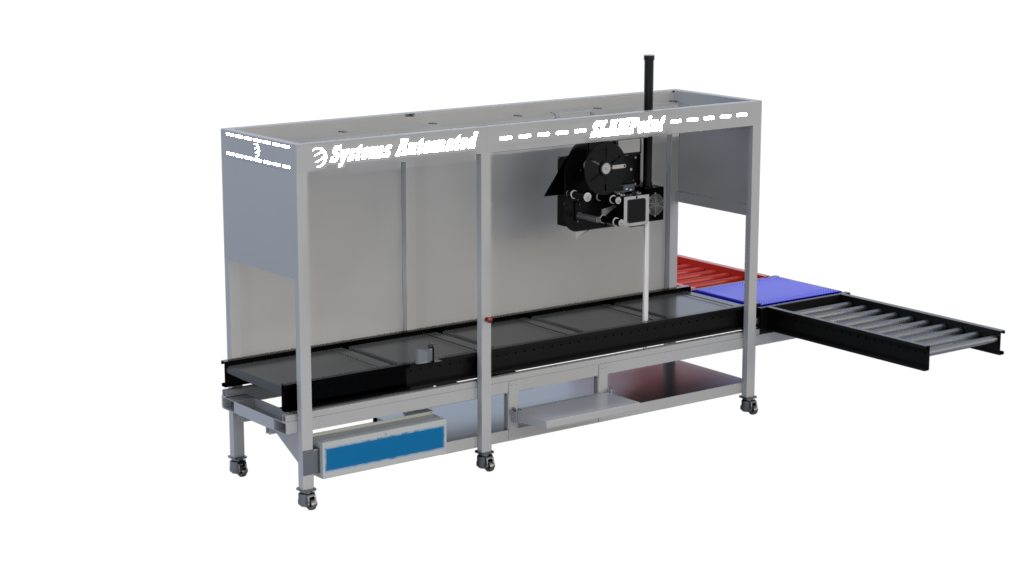

Add 3rd Destination for Cartons and Polybags

(Requires Hospital Divert)
Includes 5’ of Gravity Conveyor

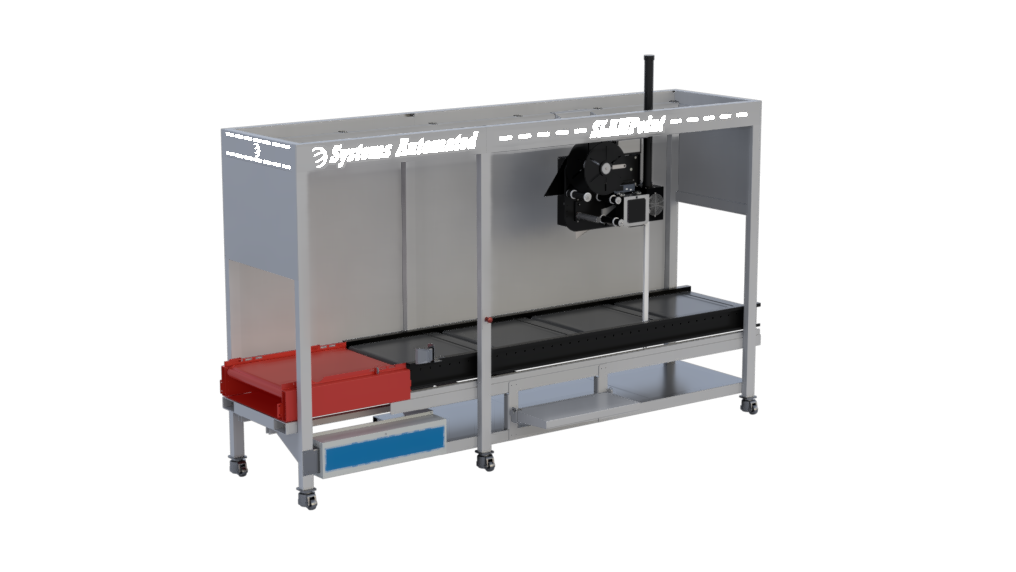

Add Aligner

Aligns Inbound Cartons and Polybags

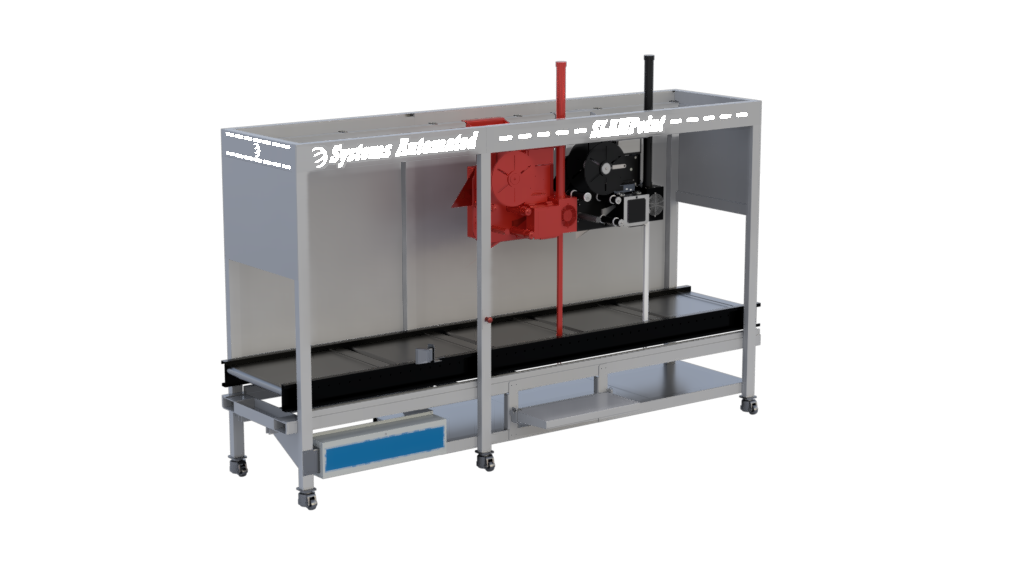

Add Second Top Apply Printer

Increases Length if used in conjunction with Scale

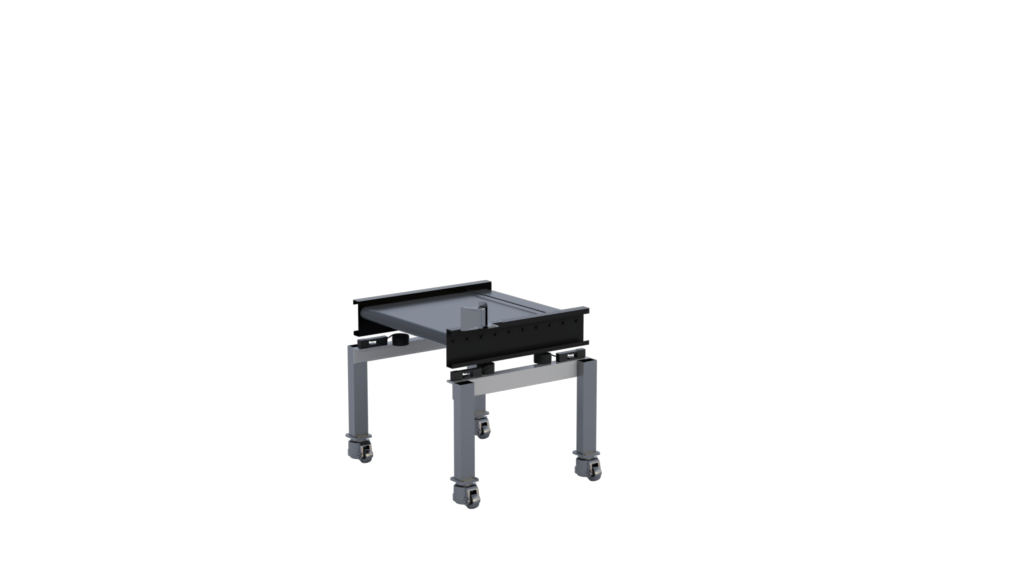

Add Separate Upstream Weigh Legs and Side Read Camera

Includes control of upstream metering zone(s) provided by others

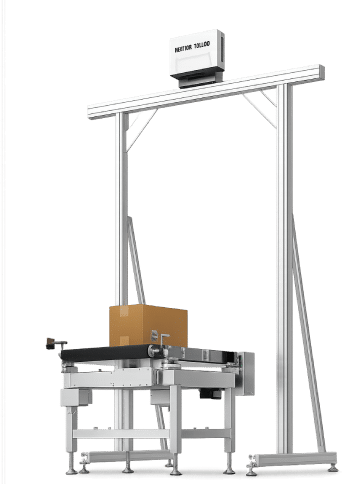

Add Separate Upstream Scale, Side Read Camera and Dimensione

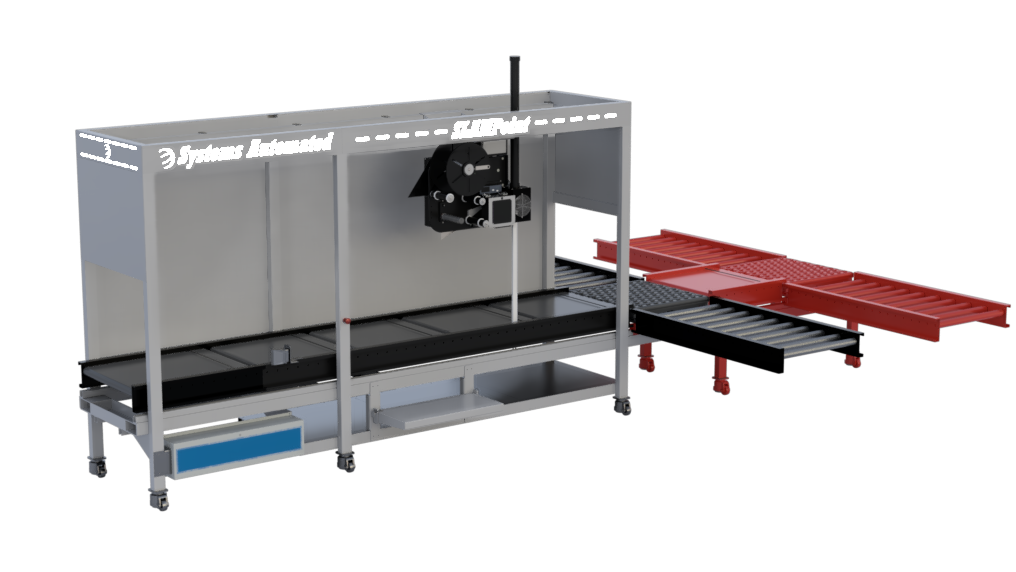

Add Downstream Bi-directional Sort of Cartons

Includes 30” of conveyor between Sorts
Includes 5’ of gravity for each Destination

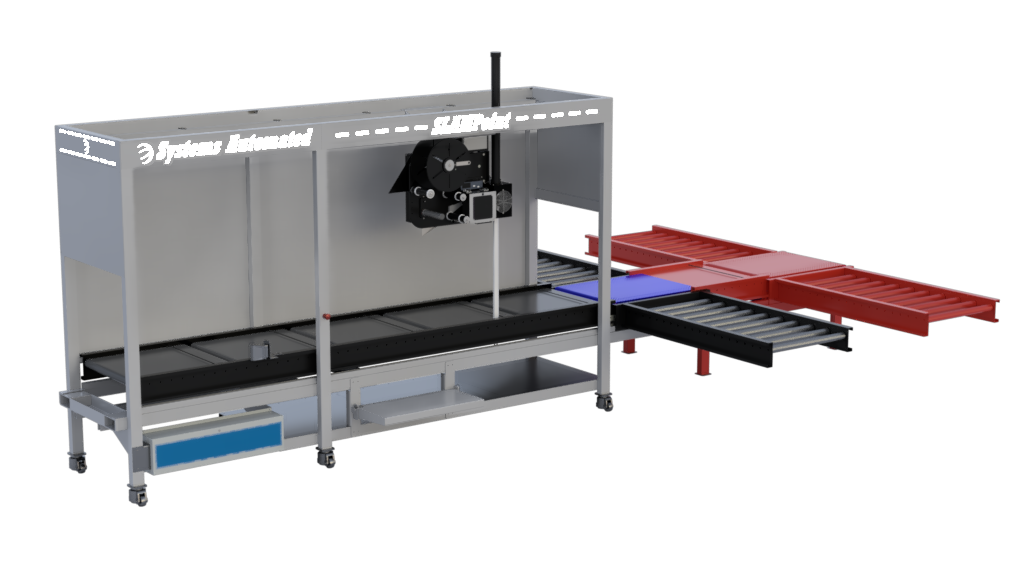

Add Downstream Bi-directional Sorts of Cartons and Polybags

Includes 30” of conveyor between Sorts
Includes 5’ of gravity for each Destination

Additional Days of Support

Immediately following installation
Return trip to be charged as an additional day
